Can this mount hold any 32-inch calendar display?
No. The display must have a matching VESA pattern and remain inside the exact unit weight limit. Screen size alone is not enough.
Accessory research profile
MOUNT PRO VESA Monitor Wall Mount B08SM5X4HW for large calendar displays
A full-motion monitor arm can support a VESA-equipped calendar display, but the tracked older ASIN and the current official wall-mount family show different load limits and should not be treated as one exact model.
- Research status
- Exact-ASIN manual source + current official family source checked
- ASIN
- B08SM5X4HW
- Checked
- 2026-08-10
Fit verdict
What the evidence supports.
Potentially useful for a display with explicit 75x75 or 100x100 VESA holes and a verified weight inside the exact listing limit. It is not appropriate for calendar frames that rely on a proprietary plate or have no VESA interface.
- Best for
- A larger VESA-equipped dashboard or calendar display that benefits from portrait rotation, tilt, swivel, and service access behind the screen.
- Not for
- Any device without matching VESA holes, any load outside the exact ASIN range, weak or unverified wall structure, or a room where an extended arm creates a collision risk.
Specifications
The numbers that decide fit.
These values come from the cited official or manual source. Live retailer variants can change.
- Tracked Amazon ASIN
- B08SM5X4HW Older exact listing represented by the manual source.
- Exact-ASIN screen range
- 13–32 inches Manual mirror; screen size alone does not establish fit.
- Exact-ASIN load range
- 4.4–17.6 pounds Manual mirror for B08SM5X4HW.
- VESA patterns
- 75x75mm and 100x100mm Shown by exact-ASIN manual and current official family.

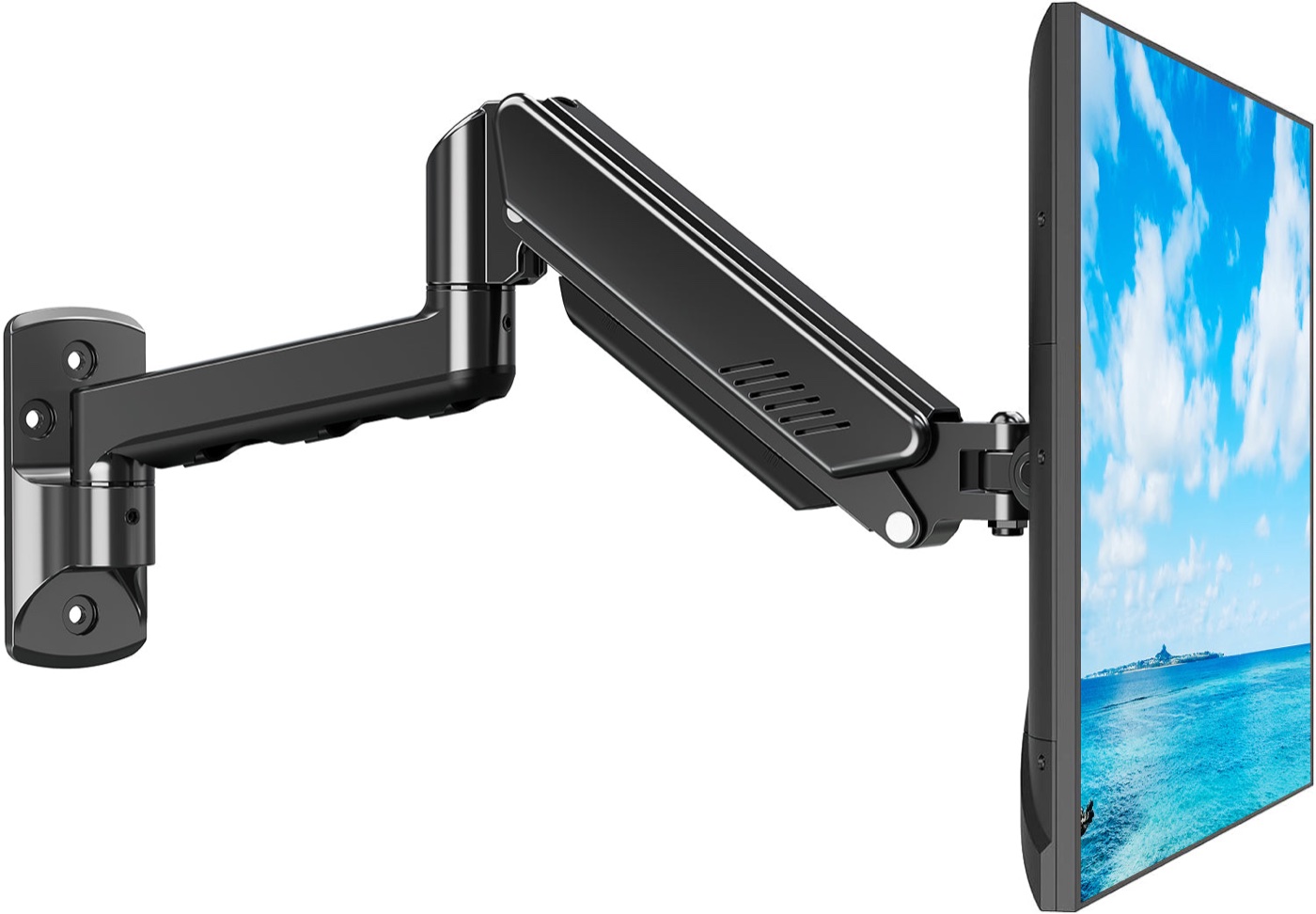

- Current official family load
- 4.4–19.8 pounds Do not transfer this higher limit to the older ASIN.
- Current official movement
- +70°/−45° tilt, swivel, 360° rotation Current family context, not confirmed for every older listing revision.
Compatibility gate
Verify all five before checkout.
- Confirm the display has physical 75x75mm or 100x100mm mounting holes.
- Use the exact current Amazon listing/manual weight limit, not the newer family limit.
- Verify the device weight includes any plate, adapter holder, or attached hardware.
- Match the wall fixing to a wood stud, brick, concrete, or another explicitly supported structure.
- Check extension clearance, cable slack, portrait rotation, and touch-induced movement.
VESA is the non-negotiable first check
This arm attaches through standard VESA holes. A display described as wall-mountable may still use a proprietary bracket, so the rear-hole pattern must be physically confirmed.
- Measure hole spacing center to center.
- Check screw size and insertion depth in the display manual.
- Do not drill or adapt the display enclosure.
A moving arm changes daily interaction
Extension and rotation can make ports easier to reach and help a screen face the room. The same movement can also introduce wobble when family members tap the display repeatedly.
- Set gas-spring tension for the exact load.
- Keep the arm outside door and walking paths.
- Leave enough cable slack for every allowed position.
The tracked ASIN and current official model are not identical evidence
The manual mirror for B08SM5X4HW shows a 17.6-pound upper limit, while MOUNT PRO’s current official wall-mount family page shows 19.8 pounds. SmartFrameLab uses the lower exact-ASIN figure for the tracked listing and treats current family details as context only.
- Recheck the live Amazon listing before purchase.
- Do not apply the newer load limit to older stock.
- Keep the manual that ships with the exact unit.
Buying path
Verify the selected listing.
Confirm the ASIN, included hardware, dimensions, current terms, and return path on Amazon. No live price, stock, or Prime promise is reproduced here.
Related research
Place the accessory inside the full setup.
Sources
Trace the specifications.
Common questions
Before placing the order.
Which weight limit should I use?
For tracked ASIN B08SM5X4HW, use the exact current listing and manual. Our manual source shows a 17.6-pound upper limit; the higher current-family limit should not be transferred automatically.
Can the screen rotate to portrait?
The current MOUNT PRO family documents 360-degree rotation, but verify the exact shipped model, cable slack, device ports, and room clearance before relying on portrait use.
Does VESA 75x75 fit a proprietary calendar bracket?
No. A proprietary mounting plate is not the same as a VESA hole pattern unless the display maker explicitly documents an adapter or matching VESA interface.
